Game Info

"El Dorado City of Gold," manufactured by Gottlieb in 1984, is a four-flipper, solid-state pinball machine with a jungle adventure theme. Designed by Ed Krynski with artwork by Larry Day, it features two banks of drop targets, the main goal being to knock down all ten upper targets to light the extra ball. The game is noted for its jungle sounds and bird calls, enhancing the immersive experience.

Game type: Electro-Mechanical

Display type: Reels

Players: 1

MPU: Gottlieb System 80A

Tags:Single Player,Western,Wedgehead,Licensed,Horses,1970s,Adventure,Fantasy,Single level playfield

Editions

Edition	Year	Production	Model

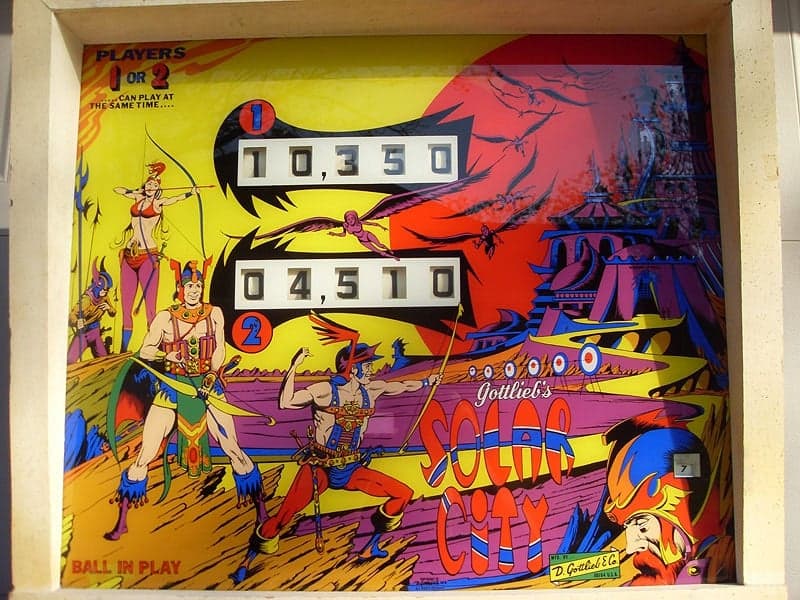

Solar CityPinside393	1977	2,634	393
City of GoldPinside692	1984	905	692
Lucky StrikePinside371	1975	1,015	371
StandardPinside370	1975	2,875	370
Target AlphaPinside392	1976	7,467	392
Gold StrikePinside372	1975	691	372
Canada DryPinside392C	1976	2,994	392C

Also made as

The same machine, made under a different name by a different manufacturer: licensed copies, conversion kits, and re-releases.

Name	Manufacturer	Year
El Dorado	Europlay	1976

Game Info

Design Team

Design: Ed Krynski
Art: Gordon Morison

Design Team

How to Play

Community rules

Quickie Version:

Lit drop targets all day; they’re worth 10 times unlit.

Go-to Flipper:

Balanced

Risk Index:

Very High

Skillshot(s):

Soft plunge the ball into the lit 5,000 lane at the upper right.

Full Rules:

Drop targets galore. Shoot the lit ones for 5,000, unlit ones are only 500. The targets reset once you have completed both banks. There’s a good amount of strategy and ball control required to get the most out of the target banks. Key Feeds: watch the three feeds on this machine carefully! When the ball comes down the left lane into the left bumper [feed 1], does it tend to come to the left, meaning either a drain out the left or a feed the left return lane, or come out the right, to either the left flipper or down the center? You’ll need to be nudging either way but check its natural tendencies first. When the ball comes down the right side, it can be moving slow if it fell through the left of the two lanes [feed 2] and hits the right wall or rattles unevenly down the right lane, or it can be moving faster if it falls cleanly down the right lane [feed 3]. Again, where does each tend to go? If the clean fall comes out fast enough to reach the left flipper, don’t nudge. If the slow fall comes out and thinks about slipping to the right towards the inlane/outlane divider, nudge. The drop targets on the right are rarely backhandable, but you can often do a “well-timed-flying-backhand” into them when the ball is coming to the right flipper. If it looks like the ball is headed that way in such a manner that you’re not likely to be able to trap it on the flipper, give this a try.

via Bob's Guide
